SPE-FW Series
Product Catalogue
Five VTOL fixed-wing platforms — each available in Survey and Surveillance configurations — engineered to cover the full spectrum of unmanned aerial mission requirements.
At a Glance
Platform Comparison
Key specifications across the full SPE-FW product line.
| Platform | Endurance | Max Range | Altitude (MSL) | Wind Resistance | Flight Speed |
|---|---|---|---|---|---|
| SPE-FW VTOL | — | — | — | — | — |
| SPE-FW LITE | — | — | — | — | — |
| SPE-FW PRO | — | — | — | — | — |
| SPE-FW VTOL PRO PLUS | — | — | — | — | — |
| SPE-FW VTOL MAX | — | — | — | — | — |
| SPE-250M: Multi-Role Fixed-Wing VTOL | — | — | — | — | — |
Platform 01

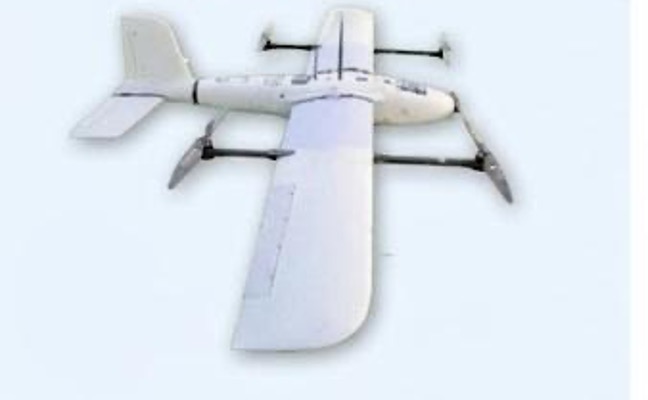

SPE-FW VTOL
Description:
The SPE-FW series features two specialized VTOL versions: Survey for high-precision industrial mapping, and Surveillance for real-time tactical reconnaissance. Both runway-independent platforms provide extended endurance and high stability to deliver critical data across demanding terrains.
Technical Specifications:
- Take-off and landing mode: VTOL
- Practical lift height: 4000m (msl)
- Wind resistance: Class 5
- Endurance: 90-120 min
- Recommended flight speed: 19-20m/s
- Stall speed: 10m/s
- Maximum range: 40km
Platform 02

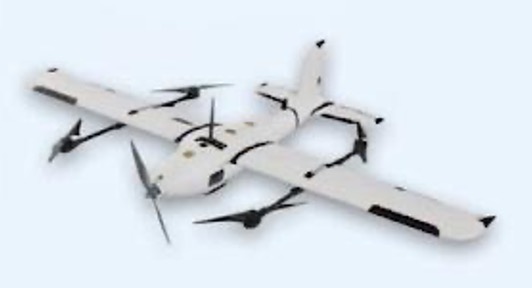

SPE-FW LITE
Description:
The SPE-FW LITE series features two specialized, runway-independent VTOL versions: Survey for ultra-portable, high-precision mapping, and Surveillance for agile, real-time tactical reconnaissance. Both lightweight platforms combine quick deployment with stable forward flight, delivering precise data across confined and remote environments.
Technical Specifications:
- Take-off and landing mode: VTOL
- Practical lift height: 3000m (msl)
- Wind resistance: Class 5
- Endurance: 60-90min
- Recommended flight speed: 18-21m/s
- Stall speed: 10m/s
- Maximum range: 60-80km
Platform 03

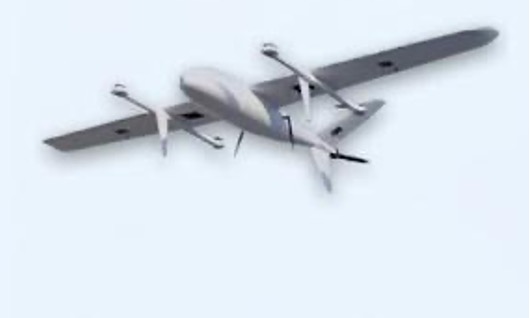

SPE-FW PRO
Description:
The SPE-FW PRO series features two advanced, runway-independent VTOL versions: Survey for high-end, flexible-payload mapping, and Surveillance for long-endurance defense operations. Both heavy-duty platforms combine superior flight stability with efficient fixed-wing range, delivering mission-critical precision across complex and demanding terrains.
Technical Specifications:
- Take-off and landing mode: VTOL
- Practical lift height: 4800m (msl)
- Wind resistance: Fixed-Wing Mode: 10.8 m/s - 13.8 m/s, VTOL Mode: 5.5 m/s - 7.9 m/s
- Endurance: 90-120 min
- Recommended flight speed: 19-20m/s
- Stall speed: 15.5 m/s (@ 12.5 kg)
- Maximum range: 40km
Platform 04

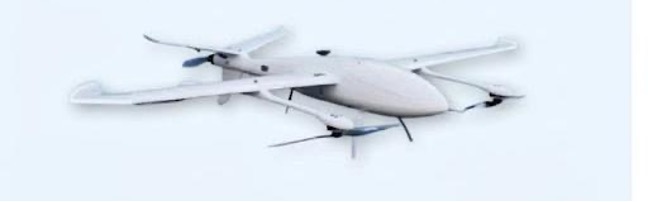

SPE-FW VTOL PRO PLUS
Description:
The SPE-FW VTOL PRO PLUS series features two next-generation, runway-independent VTOL versions: *Survey* for heavy-duty, large-scale industrial mapping, and *Surveillance* for extended-endurance, critical mission deployments. Both flagship platforms integrate exceptional payload capacity with high-efficiency fixed-wing range, delivering robust performance and high-precision data in the most demanding environments.
Technical Specifications:
- Take-off and landing mode: VTOL
- Practical lift height: 5000m (msl)
- Wind resistance: ≤ 12 m/s (Level 6 Wind)
- Endurance: 120 min
- Recommended flight speed: 21-30 m/s
- Stall speed: 17m/s
- Maximum range: 100-120km
Platform 05

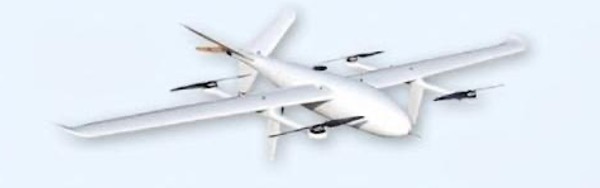

SPE-FW VTOL MAX
Description:
The SPE-FW VTOL MAX series features two heavy-duty, runway-independent VTOL versions: *Survey* for large-scale, high-precision industrial mapping, and *Surveillance* for strategic, long-range deployments. Both high-capacity platforms combine maximum endurance with high-efficiency fixed-wing performance, delivering exceptional flight stability and reliable data in the most demanding environments.
Technical Specifications:
- Take-off and landing mode: VTOL
- Practical lift height: 6000m (msl)
- Wind resistance: Fixed-Wing Mode: 10.8 m/s - 13.8 m/s, VTOL Mode: 5.5 m/s - 7.9 m/s
- Endurance: 150 min
- Recommended flight speed: 22-28 m/s
- Stall speed: 17m/s
- Maximum range: 120 km above
Platform 06 — Top of Line
SPE-250M: Multi-Role Fixed-Wing VTOL
Platform Overview
The SPE-250M is an advanced fixed-wing VTOL unmanned aerial system engineered for maritime and special operations. Designed for ship-deck launch and autonomous sea recovery, it combines fixed-wing endurance with rotary-system basing flexibility -delivering persistent ISR, SIGINT collection, and payload delivery.
Key Highlights:
Ship-Deck Launch Ready: Autonomous VTOL from vessel deck. No catapult or runway
required.
All-Weather EO/IR Payload: Integrated dual-band optics - 8MP EO + LWIR thermal, 2-
axis stabilisation.
SIGINT Capable: GSM/LTE IMSI intercept and PTT collection with 2 TB onboard storage.
Technical Specifications
Airframe & System
Platform Type: Fixed-Wing VTOL (Hybrid)
Role: ISR, Recce, SIGINT, Payload Delivery
Length: <= 2.0 m (fully assembled)
Wingspan: <= 2.6 m (fully assembled)
MTOW: <= 25 kg (mission-ready)
Complete System Weight: <= 60 kg (UAV + GCS + accessories)
Protection Class: IP 54+ | MIL-STD-810G Salt/Mist/Rain
Propulsion: Battery / Fuel / Hybrid Combo
Assembly Time: < 30 minutes
Acoustic Signature: < 50 dB at 500 m slant range
Performance Envelope
Operational Range: > 125 km
Endurance: > 3 hrs (with 2 kg droppable payload)
Cruise Speed: >= 60 kmph
Max Altitude: Up to 4,500 m AMSL
Wind Resistance: Sustained 20 kmph | Gusting 25 kmph
Operating Temperature: -10°C to +50°C
Payload Capacity: >= 2 kg droppable + EO/IR + SIGINT
Launch & Recovery: Autonomous VTOL - ship-deck compatible
GNSS Failsafe: Autonomous safe landing on GPS loss
